Minebea Intec IF Series Painted Steel Platform Scale

Standard Features

Various options for portability utilizing unique MoveLine weighing platform
Four strain gauge stainless steel load cells ensure precise results
Resolution: scale intervals of 15,000 d or 30,000 d
Drive-on ramp included with every platform
No pit required

Applications

Pharmaceutical, chemical, electronics, food processing, precious metals, metal production and processing

Optional Configurations

T14: Integrated column
T4: Stop bar
T15: Second ramp

Request More Information

WARNING: Cancer and Reproductive Harm California Proposition 65

HD View

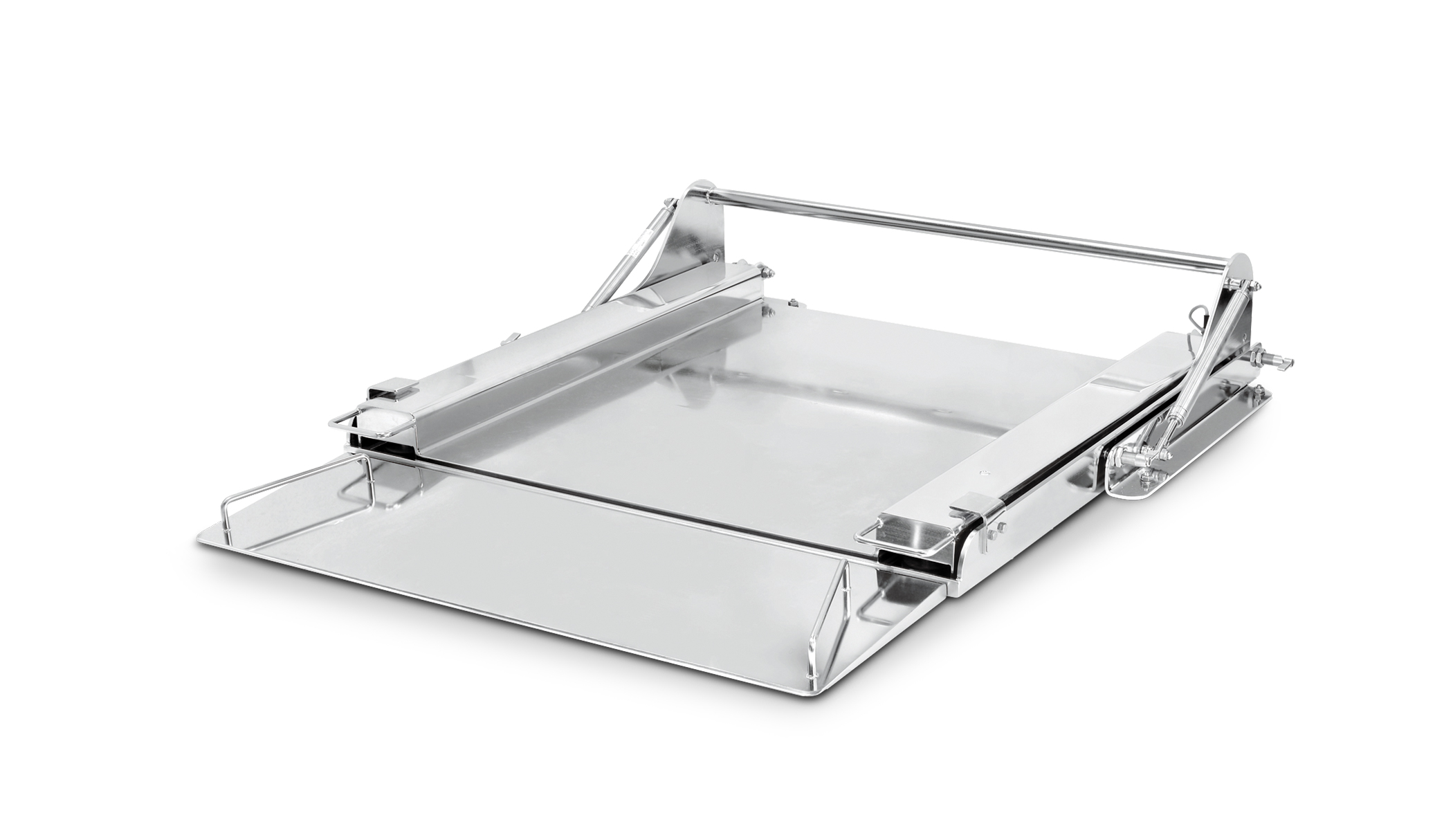

The Minebea Intec IF Series painted steel platform scales delivers various options for portability utilizing the unique MovelIne weighing platform.

Minebea Intec IF Series Painted Steel Platform Specifications

Cable Length:
6 m (19.7 ft)

Rating/Material:
NEMA Type 4, IP65
Mild steel powder coated

Regulatory Compliance:
HACCP, FDA

Warranty:
Two-year limited, pending evaluation

Resources/Downloads

Catalogs

Title	Download	Email
IF Series Painted Steel Platform Catalog Page	Download	Email

Parts

Weighing Surface 23.6 inches x [multiple dimensions]

Part #	Description	List Price	Cart/Quote
100970	Base,Painted IFP4-150GG IF Series Painted Steel Platform, 23.6 Inches x 23.6 Inches 330 lb x 0.01lb (150 kg x 0.005kg) Standard Platform includes Stainless Steel Load Cells and Mild Steel Ramp, Unit Rated IP-65	List Price: $12,375.00	View
100973	Base,Painted IFP4-300GG IF Series Painted Steel Platform, 23.6 Inches x 23.6 Inches 660 lb x 0.02lb (300 kg x 0.01kg) Standard Platform includes Stainless Steel Load Cells and Mild Steel Ramp, Unit Rated IP-65	List Price: $12,375.00	View
100974	Base,Painted IFP4-600GG IF Series Painted Steel Platform, 23.6 Inches x 23.6 Inches 1320 lb x 0.05lb (600 kg x 0.002kg) Standard Platform includes Stainless Steel Load Cells and Mild Steel Ramp, Unit Rated IP-65	List Price: $12,375.00	View
100975	Base,Painted IFP4-1000GG IF Series Painted Steel Platform, 23.6 Inches x 23.6 Inches 2200 lb x 0.1lb (1000 kg x 0.05kg) Standard Platform includes Stainless Steel Load Cells and Mild Steel Ramp, Unit Rated IP-65	List Price: $12,375.00	View

Weighing Surface 31.5 inches x [multiple dimensions]

Part #	Description	List Price	Cart/Quote
100984	Base,Painted IFP4-150IG IF Series Painted Steel Platform, 31.5 Inches x 23.6 Inches 330lb x 0.01lb, (150kg x 0.01kg), Includes Mild Steel Ramp, Stainless Steel Load Cells	List Price: $12,540.00	View
100986	Base,Painted IFP4-300IG IF Series Painted Steel Platform, 31.5 Inches x 23.6 Inches 660lb x 0.02lb, (300kg x 0.01kg), Includes Mild Steel Ramp, Stainless Steel Load Cells	List Price: $12,540.00	View
100987	Base,Painted IFP4-600IG IF Series Painted Steel Platform, 31.5 Inches x 23.6 Inches 1320lb x 0.05lb, (600kg x 0.02kg), Includes Mild Steel Ramp, Stainless Steel Load Cells	List Price: $12,540.00	View
100988	Base,Painted IFP4-1000IG IF Series Painted Steel Platform, 31.5 Inches x 23.6 Inches 2200lb x 0.1lb, (1000kg x 0.05kg), Includes Mild Steel Ramp, Stainless Steel Load Cells	List Price: $12,540.00	View
100991	Base,Painted IFP4-150II IF Series Painted Steel Platform, 31.5 Inches x 31.5 Inches 330lb x 0.01lb (150kg x 0.005kg) Includes Painted Steel Platform, Stainless Steel Load Cells and Ramp.	List Price: $12,677.50	View
100992	Base,Painted IFP4-300II IF Series Painted Steel Platform, 31.5 Inches x 31.5 Inches 660lb x 0.02lb (300kg x 0.01kg) Includes Painted Steel Platform, Stainless Steel Load Cells and Ramp.	List Price: $12,677.50	View
100993	Base,Painted IFP4-600II IF Series Painted Steel Platform, 31.5 Inches x 31.5 Inches 1320lb x 0.05lb (600kg x 0.2kg) Includes Painted Steel Platform, Stainless Steel Load Cells and Ramp.	List Price: $12,677.50	View
100994	Base,Painted IFP4-1000II IF Series Painted Steel Platform, 31.5 Inches x 31.5 Inches 220lb x 0.1lb (1000kg x 0.05kg) Includes Painted Steel Platform, Stainless Steel Load Cells and Ramp.	List Price: $12,677.50	View
100995	Base,Painted IFP4-1500II IF Series Painted Steel Platform, 31.5 Inches x 31.5 Inches 3300lb x 0.1lb (1500kg x 0.05kg) Includes Painted Platform Stainless Steel Load Cells and Ramp.	List Price: $12,677.50	View

Weighing Surface 39.4 inches x [multiple dimensions]

Part #	Description	List Price	Cart/Quote
101005	Base,Painted IFP4-150LG IF Series Painted Base, 39.4 Inches x 23.6 Inches, 330 lb x 0.01lb (150kg x 0.005kg) Includes Painted Base, Stainless Steel Load Cells and Painted Ramp	List Price: $12,677.50	View
101006	Base,Painted IFP4-300LG IF Series Painted Base, 39.4 Inches x 23.6 Inches, 660 lb x 0.02lb (300kg x 0.01kg) Includes Painted Base, Stainless Steel Load Cells and Painted Ramp	List Price: $12,677.50	View
101007	Base,Painted IFP4-600LG IF Series Painted Base, 39.4 Inches x 23.6 Inches, 1320 x 0.05lb (600kg x 0.02kg) Includes Painted Base, Stainless Steel Load Cells and Painted Ramp	List Price: $12,677.50	View
101008	Base,Painted IFP4-1000LG IF Series Painted Base, 39.4 Inches x 23.6 Inches, 2200 lb x 0.1lb (1000kg x 0.05kg) Includes Painted Base, Stainless Steel Load Cells and Painted Ramp	List Price: $12,677.50	View
101009	Base,Painted IFP4-1500LG IF Series Painted Base, 39.4 Inches x 23.6 Inches, 3300 lb x 0.1lb (1500kg x 0.05kg) Includes Painted Base, Stainless Steel Load Cells and Painted Ramp	List Price: $12,677.50	View
101010	Base,Painted IFP4-150LI Painted Steel Platform, 39.4 Inches x 31.5 Inches, 330lb x 0.01lb (150kg x 0.005kg) Includes Painted Steel Base, Stainless Steel Load Cells, and Painted Steel Ramp	List Price: $12,815.00	View
101011	Base,Painted IFP4-300LI Painted Steel Platform, 39.4 Inches x 31.5 Inches, 660lb x 0.02lb (300kg x 0.01kg) Includes Painted Steel Base, Stainless Steel Load Cells, and Painted Steel Ramp	List Price: $12,815.00	View
101012	Base,Painted IFP4-600LI Painted Steel Platform, 39.4 Inches x 31.5 Inches, 1320lb x 0.05lb (600kg x 0.02kg) Includes Painted Steel Base, Stainless Steel Load Cells, and Painted Steel Ramp	List Price: $12,815.00	View
101013	Base,Painted IFP4-1000LI Painted Steel Platform, 39.4 Inches x 31.5 Inches, 2200lb x 0.1lb (1000kg x 0.05kg) Includes Painted Steel Base, Stainless Steel Load Cells, and Painted Steel Ramp	List Price: $12,815.00	View
101014	Base,Painted IFP4-1500LI Painted Steel Platform, 39.4 Inches x 31.5 Inches, 3330lb x 0.1lb (1500kg x 0.05kg) Includes Painted Steel Base, Stainless Steel Load Cells, and Painted Steel Ramp	List Price: $12,815.00	View
101015	Base,Painted IFP4-150LL IF Series Painted Steel Platform, 39.4 Inches x 39.4 Inches, 330lb x 0.01lb (150kg x 0.005kg) Includes Painted Steel Platform, Stainless Steel Load Cells and Painted Steel Ramp	List Price: $13,612.50	View
101016	Base,Painted IFP4-300LL IF Series Painted Steel Platform, 39.4 Inches x 39.4 Inches, 660lb x 0.02lb (300kg x 0.01kg) Includes Painted Steel Platform, Stainless Steel Load Cells and Painted Steel Ramp	List Price: $13,612.50	View
101017	Base,Painted IFP4-600LL IF Series Painted Steel Platform, 39.4 Inches x 39.4 Inches, 1320lb x 0.05lb (600kg x 0.02kg) Includes Painted Steel Platform, Stainless Steel Load Cells and Painted Steel Ramp	List Price: $13,612.50	View
101018	Base,Painted IFP4-1000LL IF Series Painted Steel Platform, 39.4 Inches x 39.4 Inches, 2200lb x 0.1lb (1000kg x 0.05kg) Includes Painted Steel Platform, Stainless Steel Load Cells and Painted Steel Ramp	List Price: $13,612.50	View
101019	Base,Painted IFP4-1500LL IF Series Painted Steel Platform, 39.4 Inches x 39.4 Inches, 3330lb x 0.1lb (1500kg x 0.05kg) Includes Painted Steel Platform, Stainless Steel Load Cells and Painted Steel Ramp	List Price: $13,612.50	View
101020	Base,Painted IFP4-3000LL IF Series Painted Steel Platform, 39.4 Inches x 39.4 Inches, 6600lb x 0.2lb (3000kg x 0.1kg) Includes Painted Steel Platform, Stainless Steel Load Cells and Painted Steel Ramp	List Price: $13,612.50	View

Weighing Surface 49.2 inches x [multiple dimensions]

Part #	Description	List Price	Cart/Quote
101021	Base,Painted IFP4-150NL IF Series Painted Steel Platform, 49.2 Inches x 39.4 Inches 330lb x 0.01lb (150kg x 0.005kg) Includes Painted Steel Base, Stainless Steel Load Cells and Painted Steel Ramp	List Price: $13,860.00	View
101022	Base,Painted IFP4-300NL IF Series Painted Steel Platform, 49.2 Inches x 39.4 Inches 660lb x 0.02lb (300kg x 0.01kg) Includes Painted Steel Base, Stainless Steel Load Cells and Painted Steel Ramp	List Price: $13,860.00	View
101023	Base,Painted IFP4-600NL IF Series Painted Steel Platform, 49.2 Inches x 39.4 Inches 1320lb x 0.05lb (600kg x 0.02kg) Includes Painted Steel Base, Stainless Steel Load Cells and Painted Steel Ramp	List Price: $13,860.00	View
101024	Base,Painted IFP4-1000NL IF Series Painted Steel Platform, 49.2 Inches x 39.4 Inches 2200lb x 0.1lb (1000kg x 0.05kg) Includes Painted Steel Base, Stainless Steel Load Cells and Painted Steel Ramp	List Price: $13,860.00	View
101025	Base,Painted IFP4-1500NL IF Series Painted Steel Platform, 49.2 Inches x 39.4 Inches 3300lb x 0.1lb (1500kg x 0.05kg) Includes Painted Steel Base, Stainless Steel Load Cells and Painted Steel Ramp	List Price: $13,860.00	View
101026	Base,Painted IFP4-3000NL IF Series Painted Steel Platform, 49.2 Inches x 39.4 Inches 6600lb x 0.2lb (3000kg x 0.1kg) Includes Painted Steel Base, Stainless Steel Load Cells and Painted Steel Ramp	List Price: $13,860.00	View
101027	Base,Painted IFP4-150NN IF Series Painted Steel Platform, 49.2 Inches x 49.2 Inches, 330lb x 0.01lb (150kg x 0.005kg) Includes Painted Steel Base, Stainless Steel Load Cells and Painted Steel Ramp	List Price: $14,382.50	View
101028	Base,Painted IFP4-300NN IF Series Painted Steel Platform, 49.2 Inches x 49.2 Inches, 660lb x 0.02lb (300kg x 0.01kg) Includes Painted Steel Base, Stainless Steel Load Cells and Painted Steel Ramp	List Price: $14,382.50	View
101029	Base,Painted IFP4-600NN IF Series Painted Steel Platform, 49.2 Inches x 49.2 Inches, 1320 x 0.05lb (600kg x 0.02kg) Includes Painted Steel Base, Stainless Steel Load Cells and Painted Steel Ramp	List Price: $14,382.50	View
101030	Base,Painted IFP4-1000NN IF Series Painted Steel Platform, 49.2 Inches x 49.2 Inches, 2200lb x 0.1lb (1000kg x 0.05kg) Includes Painted Steel Base, Stainless Steel Load Cells and Painted Steel Ramp	List Price: $14,382.50	View
101031	Base,Painted IFP4-1500NN IF Series Painted Steel Platform, 49.2 Inches x 49.2 Inches, 3300lb x 0.1lb (1500kg x 0.05kg) Includes Painted Steel Base, Stainless Steel Load Cells and Painted Steel Ramp	List Price: $14,382.50	View
101032	Base,Painted IFP4-3000NN IF Series Painted Steel Platform, 49.2 Inches x 49.2 Inches, 6600lb x 0.2lb (3000kg x 0.1kg) Includes Painted Steel Base, Stainless Steel Load Cells and Painted Steel Ramp	List Price: $14,382.50	View

Weighing Surface 59.1 inches x [multiple dimensions]

Part #	Description	List Price	Cart/Quote
101033	Base,Painted IFP4-150RN IF Series Painted Steel Platform, 59.1 Inches x 49.2 Inches, 330lg x 0.01lb (150kg x 0.005kg) Includes Painted Steel Base, Stainless Steel Load Cells and Painted Steel Ramp	List Price: $15,097.50	View
101034	Base,Painted IFP4-300RN IF Series Painted Steel Platform, 59.1 Inches x 49.2 Inches, 660lb x 0.02lb (300kg x 0.01kg) Includes Painted Steel Base, Stainless Steel Load Cells and Painted Steel Ramp	List Price: $15,097.50	View
101035	Base,Painted IFP4-600RN IF Series Painted Steel Platform, 59.1 Inches x 49.2 Inches, 1320lb x 0.05lb (600kg x 0.02kg) Includes Painted Steel Base, Stainless Steel Load Cells and Painted Steel Ramp	List Price: $15,097.50	View
101036	Base,Painted IFP4-1000RN IF Series Painted Steel Platform, 59.1 Inches x 49.2 Inches, 2200lb x 0.1lb (1000kg x 0.05kg) Includes Painted Steel Base, Stainless Steel Load Cells and Painted Steel Ramp	List Price: $15,097.50	View
101037	Base,Painted IFP4-1500RN IF Series Painted Steel Platform, 59.1 Inches x 49.2 Inches, 3330lg x 0.1lb (1500kg x 0.05kg) Includes Painted Steel Base, Stainless Steel Load Cells and Painted Steel Ramp	List Price: $15,097.50	View
101038	Base,Painted IFP4-3000RN IF Series Painted Steel Platform, 59.1 Inches x 49.2 Inches, 6600lb x 0.2lb (3000kg x 0.1kg) Includes Painted Steel Base, Stainless Steel Load Cells and Painted Steel Ramp	List Price: $15,097.50	View
101039	Base,Painted IFP4-150RR IF Series Painted Steel Platform, 59.1 Inches x 59.1 Inches, 330lb x 0.01lb (150kg x 0.005kg) Includes Painted Steel Base, Stainless Steel Load Cells and Painted Steel Ramp	List Price: $15,895.00	View
101040	Base,Painted IFP4-300RR IF Series Painted Steel Platform, 59.1 Inches x 59.1 Inches, 660lb x 0.02lb (300kg x 0.01kg) Includes Painted Steel Base, Stainless Steel Load Cells and Painted Steel Ramp	List Price: $15,895.00	View
101041	Base,Painted IFP4-600RR IF Series Painted Steel Platform, 59.1 Inches x 59.1 Inches, 1320lb x 0.05lb (600kg x 0.02kg) Includes Painted Steel Base, Stainless Steel Load Cells and Painted Steel Ramp	List Price: $15,895.00	View
101042	Base,Painted IFP4-1000RR IF Series Painted Steel Platform, 59.1 Inches x 59.1 Inches, 2200lb x 0.1lb (1000kg x 0.05kg) Includes Painted Steel Base, Stainless Steel Load Cells and Painted Steel Ramp	List Price: $15,895.00	View
101043	Base,Painted IFP4-1500RR IF Series Painted Steel Platform, 59.1 Inches x 59.1 Inches, 3300lb x 0.1lb (1500kg x 0.05kg) Includes Painted Steel Base, Stainless Steel Load Cells and Painted Steel Ramp	List Price: $15,895.00	View
101044	Base,Painted IFP4-3000RR IF Series Painted Steel Platform, 59.1 Inches x 59.1 Inches, 6600lb x 0.2lb (3000kg x 0.1kg) Includes Painted Steel Base, Stainless Steel Load Cells and Painted Steel Ramp	List Price: $15,895.00	View

Weighing Surface 78.7 inches x [multiple dimensions]

Part #	Description	List Price	Cart/Quote
101045	Base,Painted IFP4-150WR IF Series Painted Steel Platform, 78.7 Inches x 59.1 Inches, 330lb x 0.01lb (150kg x 0.005kg) Includes Painted Steel Base, Stainless Steel Load Cells and Painted Steel Ramp	List Price: $16,390.00	View
101046	Base,Painted IFP4-300WR IF Series Painted Steel Platform, 78.7 Inches x 59.1 Inches, 660lb x 0.02lb (300kg x 0.01kg) Includes Painted Steel Base, Stainless Steel Load Cells and Painted Steel Ramp	List Price: $16,390.00	View
101047	Base,Painted IFP4-600WR IF Series Painted Steel Platform, 78.7 Inches x 59.1 Inches, 1320lb x 0.05lb (600kg x 0.02kg) Includes Painted Steel Base, Stainless Steel Load Cells and Painted Steel Ramp	List Price: $16,390.00	View
101048	Base,Painted IFP4-1000WR IF Series Painted Steel Platform, 78.7 Inches x 59.1 Inches, 2200lb x 0.1lb (1000kg x 0.05kg) Includes Painted Steel Base, Stainless Steel Load Cells and Painted Steel Ramp	List Price: $16,390.00	View
101049	Base,Painted IFP4-1500WR IF Series Painted Steel Platform, 78.7 Inches x 59.1 Inches, 3300lb x 0.1lb (1500kg x 0.05kg) Includes Painted Steel Base, Stainless Steel Load Cells and Painted Steel Ramp	List Price: $16,390.00	View
101050	Base,Painted IFP4-3000WR IF Series Painted Steel Platform, 78.7 Inches x 59.1 Inches, 6600lb x 0.2lb (3000kg x 0.1kg) Includes Painted Steel Base, Stainless Steel Load Cells and Painted Steel Ramp	List Price: $16,390.00	View

Options

Part #	Description	List Price	Cart/Quote
Consult	T4 Stop bar	Consult	View

Related Products

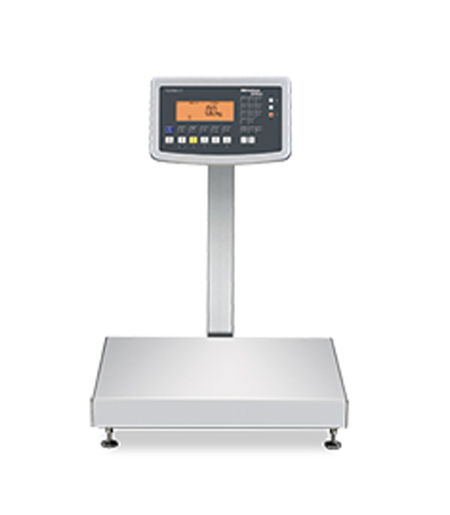

Minebea Intec Combics® 2 Complete Scale
