Product PDF

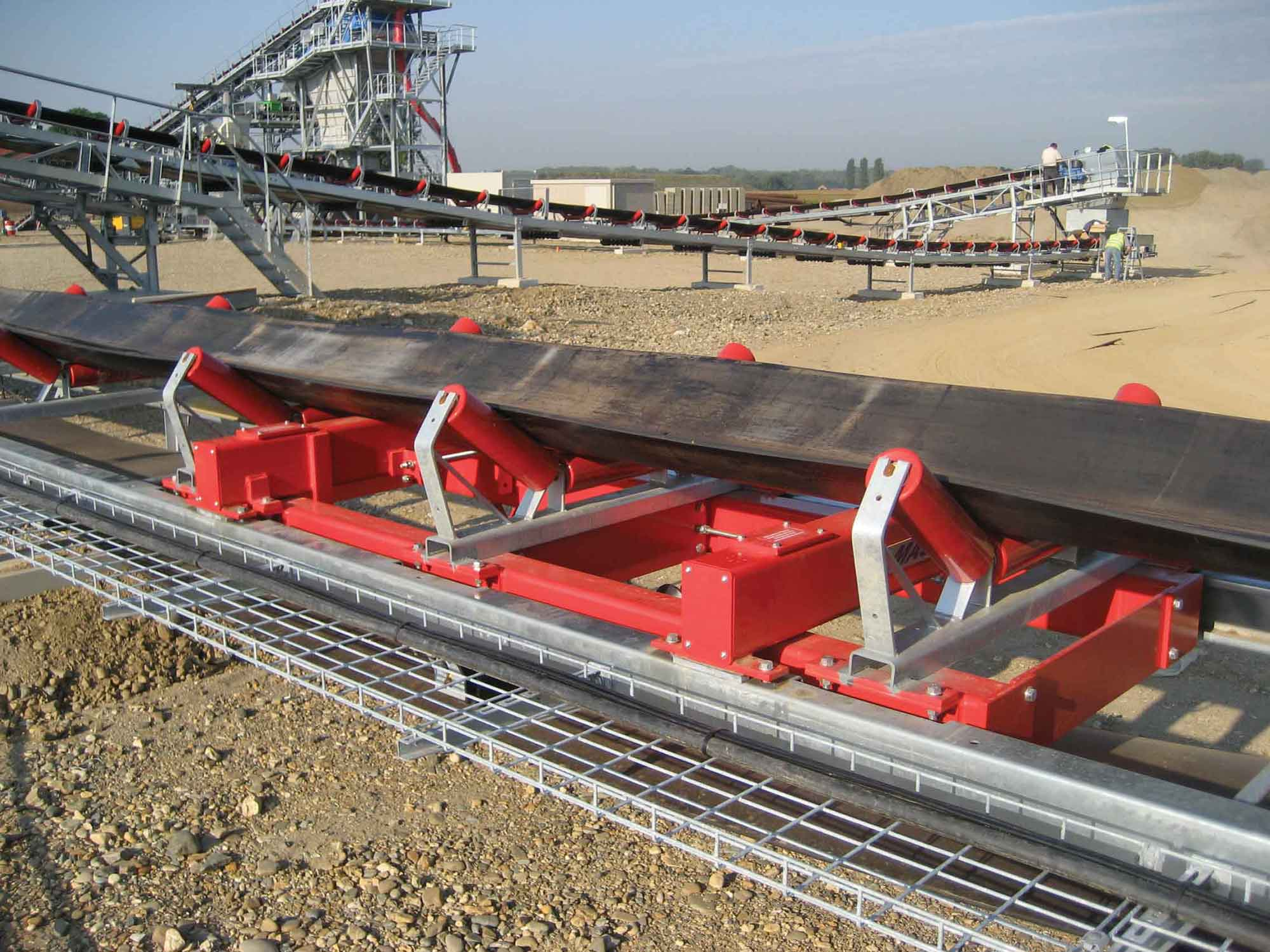

143 Master Belt Scale Weigh Frame

  • Custom-made weighframe for application
  • Inner frame is free-floating platform
  • Weighframe fits standard conveyor system
  • Multiple idler

Options

  • Models available for ATEX, categories II2D and II3D (zone 21 and 22)

Applications

  • Medium to heavy capacity belt scales
Request More Information
Hdimage(1)

Conveyor Width:
500 - 3.000mm

Capacity:
20-20.000 t/h

Belt Speed:
0,1-7 m/s

Inclination:
Max 25 degrees		 Integrator:
WE403D, WE404D, WE503D, 920BCi, 882

Accuracy Guidelines:
MID approval, Class 0,5 / 1 / 2

System Accuracy:
Application specific from ± 0,5%

Material:
Powder coated steel / galvanised steel / stainless steel		 Junction Box:
JBL

Speed Pickups:
Application will determine:
SPU5020, SPU5826, SPU012P, SPU2160N, SPU2160EN

Warranty:
One-year limited warranty

Resources/Downloads

Title Collateral Wizard Request Download Email Category
Belt Scale Buyer's Guide Request Download Email Belt Scale Weigh Frames|Conveyor Belt Scales|Belt Scale Components

Parts

Part # Description List Price Cart/Quote
Consult BS143 belt scale

Consult
